Ｗhite Automatic Vertical Potato Chips Packing Machine 380V
Application:
The bagging machine is widely used for packing of products in shape of granules, stripes, slices, such as candy, potato chips, jelly, and peanuts.
Characteristics:
1. Touch screen with stable transmitting PLC control to perform bag making, weighing, filling, sealing, code printing, and cutting automatically.
2. Independent compressed air control and electrical wire system control separately, low noise in running, stable performance.
3. Vacuum belt pulling system to feed film and make bags with no faults.
4. Double servo control system, precise positioning.
5. Easy to palce the rewind rolls onto the machine.
6. Set uo and adjust parameters on touch screen to change bag size.
7. Sealed structure design to prevent dust contamination.
8. Multi computerized weighing heads to deliver correct weight.
Specifications:
| Mode | HTL-V420 | HTL-V520 | HTL-V680 |
| Bag length(mm) | 80-300(L) | 80-400(L) | 100-480(L) |
| Bag width(mm) | 50-200(W) | 80-250(W) | 180-320(W) |
| Max width of roll film(mm) | 420 | 520 | 680 |
| Packing speed(bags/min) | 5-60 | 5-50 | 5-50 |
| Volumn range | 150-1200ml | 3000Max | 6000Max |
| Air consumption(Mpa) | 0.65 | 0.65 | 0.65 |
| Gas consumption(m3/min) | 0.3 | 0.4 | 0.4 |
| Power voltage | 220V | 220V | 220V |
| Power(KW) | 2.2 | 4 | 5 |
| Dimension(L*W*H)mm | 1320*950*1360 | 1150*1795*1650 | 1780*1350*1950 |
| Weight(kg) | 540 | 600 | 900 |
WHY CHOOSE US?
• Top Food machine manufacturer in China
• 20000 square meters production plants
• Over 22 years of experience
• Made-in-China’s Gold member since 2009
• CE, ISO9001 certified
• Engineers able to offer overseas installation and testing, and training
• Prompt delivery and flexible payment terms
• Small order is welcomed
• professinal team with strong technical and R&D knowledge to develop advanced food equipments
• save labor cost and improve the capacity.
Packaging and Delivery
1. Prompt deliver at the very day.
2. Sophisticated and professional logistic agent.
3. Well-trained and disciplined packing team.
4. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.

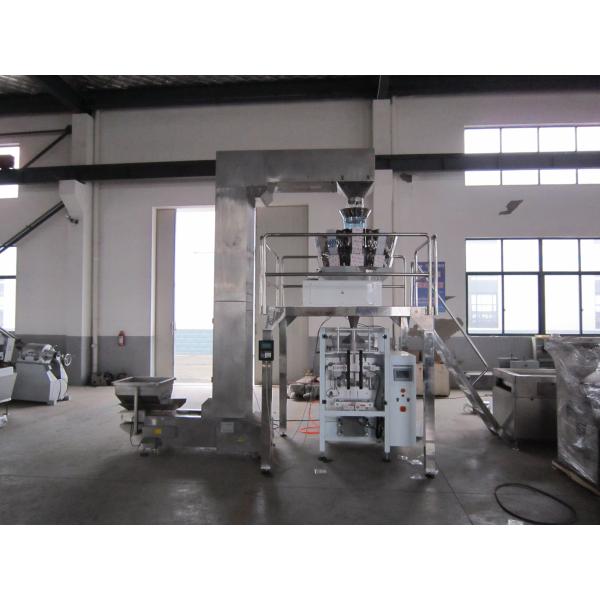

Machine pictures
Finished product pictures
Product Tags:
|
|
ＷHite Automatic Vertical Potato Chips Packing Machine 380V PLC Control Images
|
